ARM what-if operation

3 minute read

Introduction

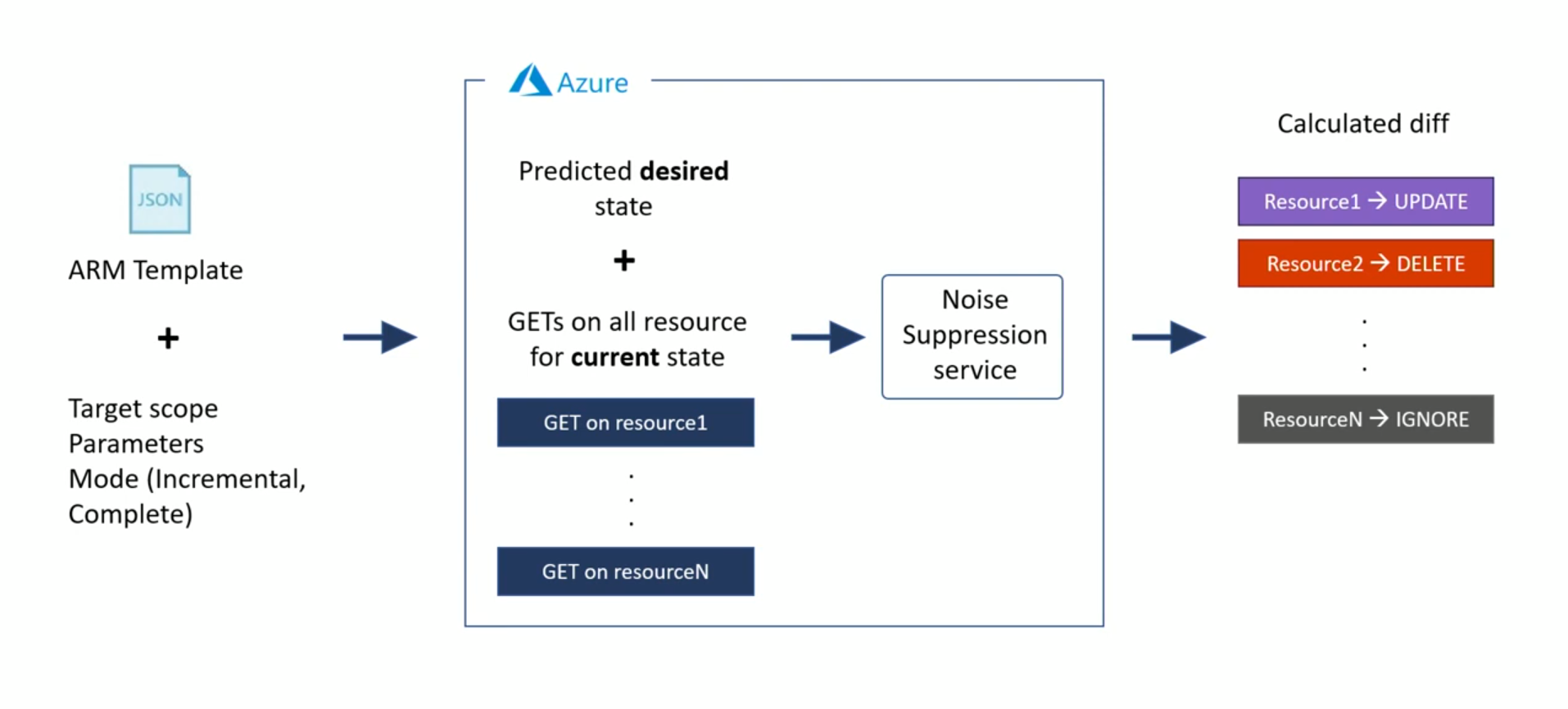

In order to validate your ARM templates you can make use of the what-if operation. Similarly to Terraform’s terraform plan command, this command will simulate any pending changes to your Azure resources. In other words, it will “predict” the outcome of your deployment before you actually deploy anything:

image-center

Prerequisites

The example below uses Azure CLI, but you may just as well use Azure PowerShell or the REST API. To follow along with the example below you’ll need Azure CLI version 2.5.0 or above:

  • Install Azure CLI using this link
  • Check your current version by running az --version and run az upgrade if your version is too old (< 2.5.0)
az --version

azure-cli                         2.12.0 *
core                              2.12.0 *
telemetry                          1.0.6

Extensions:
azure-devops                      0.17.0
interactive                        0.4.3

...

You have 2 updates available. Consider updating your CLI installation with 'az upgrade'

Example

Setup

Grab the files from my ARM what-if GitHub repo, or use the following git clone command:

git clone https://github.com/smholvoet/arm-what-if.git

The az-cli.ps1 file contains all the steps to go through the different examples. I ran the examples below against my MSDN subscription, you’ll need to modify the value on line 4.

# Login & select subscription
az login
az account list --output table
az account set --subscription "<name or GUID of your Azure subscription>"
az account show

The commands above will authenticate to Azure and output a list of your available subscriptions. Select the correct one by running az account set --subscription followed by the Name or SubscriptionId of your subscription. Running az account show will show you in which subscription the resource group will eventually be created.

Next up, create a new resource group. This resource group will contain the resource(s) which we’ll be creating via the ARM templates:

# Create resource group
az account list-locations | findStr 'europe'
az group create --name rg-arm `
                --location westeurope

ARM template

You should find 2 ARM templates:

  • azuredeploy.json: initial template
  • azuredeploy_update.json: updated template which contains a modified description

The templates which we’ll be using are fairly simply and only contain a storage account.

Template contents:

{
    "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
    "contentVersion": "1.0.0.0",
    "parameters": {"storageAccountName": {
        "type": "string",
        "metadata": {
            "description": "Storage account name"
        },
        "minLength": 3,
        "maxLength": 24
    }},
    "functions": [],
    "variables": {},
    "resources": [{
        "name": "[parameters('storageAccountName')]",
        "type": "Microsoft.Storage/storageAccounts",
        "apiVersion": "2019-06-01",
        "tags": {
            "displayName": "[parameters('storageAccountName')]"
        },
        "location": "[resourceGroup().location]",
        "kind": "StorageV2",
        "sku": {
            "name": "Premium_LRS",
            "tier": "Premium"
        }
    }],
    "outputs": {}
}

The parameters file:

{
    "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentParameters.json#",
    "contentVersion": "1.0.0.0",
    "parameters": {
        "storageAccountName": {
            "value": "<your storage account name>"
        }
    }
}

⚠️ Warning: Enter a value for the storageAccountName in the azuredeploy.parameters.json file. Make sure you enter a valid and unique storage account name, which is between 3 and 24 characters in length and uses numbers and lower-case letters only.

Create resources

Now that we’ve created a resource group we can start running our ARM templates. Execute the what-if operation on the empty resource group which we’ve just created:

az deployment group what-if --name 'initialDeploy' `
                            --resource-group rg-arm `
                            --template-file .\azuredeploy.json `
                            --parameters .\azuredeploy.parameters.json

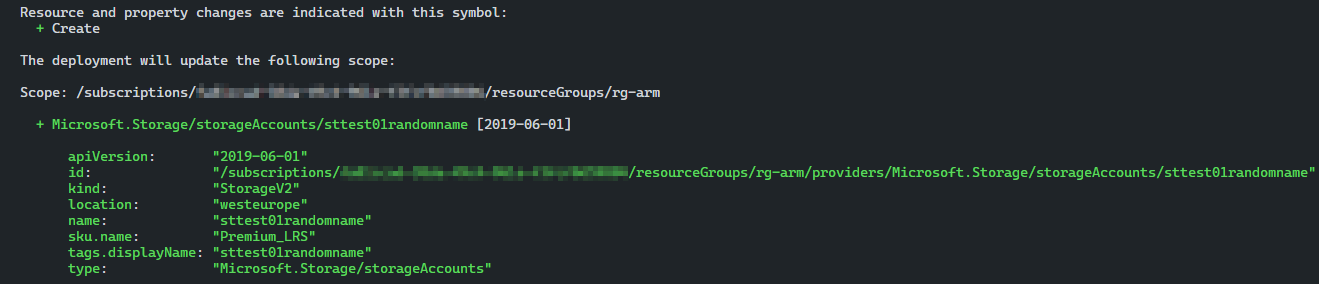

Result: image-center

Thanks to the output of the what-if operation we can now safely deploy the initial template:

az deployment group create  --name 'initialDeploy' `
                            --resource-group rg-arm `
                            --template-file .\azuredeploy.json `
                            --parameters .\azuredeploy.parameters.json

Mofidy resources

Execute what-if operation again, using the updated template this time. Notice how the --template-file .\azuredeploy_update.json parameter points to a different template this time. This template is exactly the same as the one we used earlier, except for the displayName property:

👉 azuredeploy.json:

...
        "tags": {
            "displayName": "[parameters('storageAccountName')]"
        },
...

👉 azuredeploy_update.json:

...
        "tags": {
            "displayName": "sttest01randomname-update"
        },
...

Go ahead and run the what-if operation. If all goes well this should now reflect the updated displayName property.

az deployment group what-if --name 'updateStorageSKU' `
                            --resource-group rg-arm `
                            --template-file .\azuredeploy_update.json `
                            --parameters .\azuredeploy.parameters.json

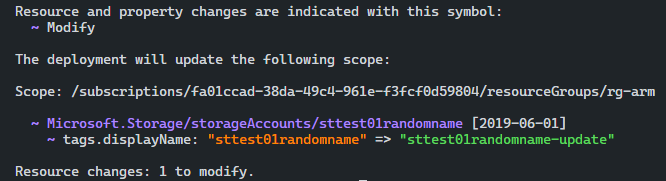

Result:

image-center

Looking good 👌. Should we deploy this template, only the displayName property will be changed, all other properties of our storage account will remain unchanged.

The steps above showed you how to run the what-if operation, which allows you to simulate pending changes to your ARM template(s). Things get more interesting if you can apply these steps in your CI/CD pipeline(s), which I’ll go through in my next blog post.
